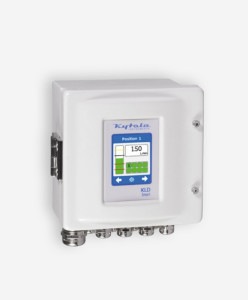

The Kytola KLD Smart local display unit is designed to monitor and display flow rates and flow alarms measured by Kytola oval gear meters or other flow meters with pulse outputs.

As name has it, Kytola KLD Smart incorporates latest monitoring technology combined with an easy-to-use touchscreen interface. Flow rates and alarms are very visual and settings are fast and easy to manage.

The device has a robust painted steel housing and it is protected by IP class 65.

KLD Smart is highly recommended and especially suitable for monitoring industrial flow and lubrication oil flow monitoring, process control and batching.

Technical data

Technical data
Model KLDS-1 KLDS-8
Supply voltage 20 – 30 VDC 20 – 30 VDC
Supply current (maximum) 100 mA @ 24 VDC 150 mA @ 24 VDC
350 mA @ 24 VDC with mA outputs
Sensor types Kytola coil, NAMUR, NPN, PNP Kytola coil, NAMUR, NPN, PNP
Communication Modbus RTU (RS-485), *Modbus TCP (Ethernet) Modbus RTU (RS-485), *Modbus TCP (Ethernet)
Current output *1 pc, 4–20 mA, active or passive *8 pcs, 4–20 mA, active
Current input 1 pc; linear, square root, table, custom unit None
Relay output 1 pc NC, max. 48 VAC/DC, 100 mA 1 pc NC, max. 48 VAC/DC, 100 mA
Housing Painted steel, *stainless steel AISI 316 Painted steel, *stainless steel AISI 316
Protection class IP65 IP65
Ambient temperature –20°C…+60°C (relative humidity < 85 %, non-condensing) –20°C…+60°C (relative humidity < 85 %, non-condensing)
Dimensions 100 x 140 x 55 mm 150 x 160 x 80 mm
Weight 0.7 kg 1.5 kg
*) Special construction on request
